automatic plate washing machine

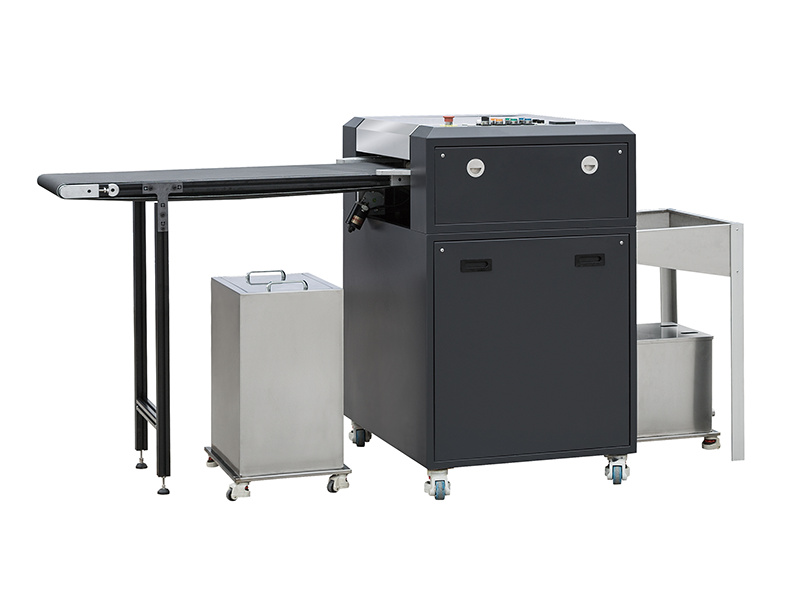

Automatic plate washing machine

★The quick and gentle cleaning process is fully automatic and leaves the plates 100% clean and dry within very short time.
★Manual cleaning is easy to damage the printing plate. From a health and safety perspective, this approach is time-consuming and often problematic. The operator's main energy should be devoted to the printing process and printing preparation.
★All types of ink are possible, and this machine is designed for environmentally friendly cleaning.
★The machine is made of stainless steel casing, which is more high-grade and durable.
★After the printing operation is complete, all the printing plates are placed on the conveyor belt, and the printing plate is automatically brought into the whole cleaning process.
★The washing and rinsing series provides an automatic two-stage cleaning process. The first stage is liquid cleaning and the second stage is rinsing with water.
★The liquid is provided with a circulating filtration function.

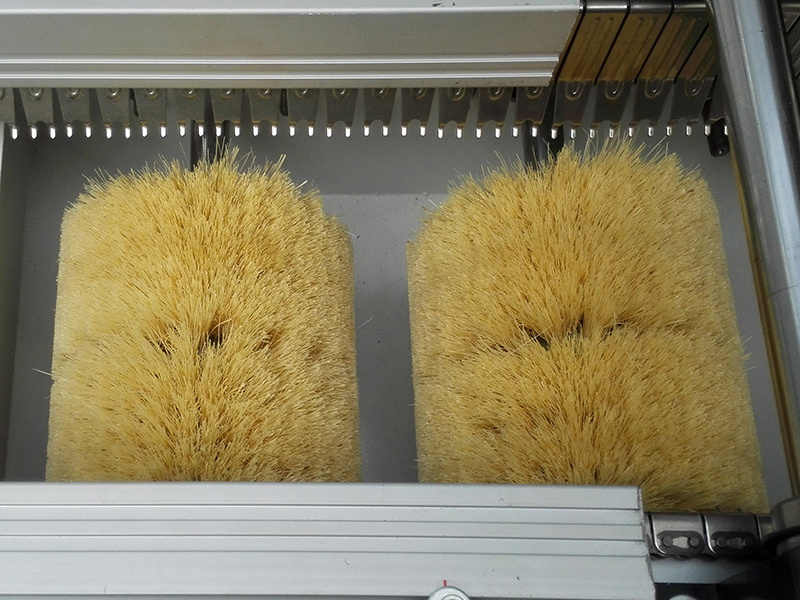

★The unique combination of a specially manufactured soft brush and a special cleaning solution ensures an efficient and gentle plate cleaning process.
★Water will remove the ink residue and cleaning fluid.
★After hot air drying, the plate can be 100% clean and dry, and can be reused immediately. The whole process only takes a few minutes.

Пожалуйста, оставьте нам сообщение или отправьте электронное письмо по конкретной цене.
Пчтовый ящик: sale6@gawangmachine.com
WhatsApp:+8615868721121
Контакты насзапросить цену

★The quick and gentle cleaning process is fully automatic and leaves the plates 100% clean and dry within very short time.

★Manual cleaning is easy to damage the printing plate. From a health and safety perspective, this approach is time-consuming and often problematic. The operator's main energy should be devoted to the printing process and printing preparation.

★All types of ink are possible, and this machine is designed for environmentally friendly cleaning.

★The machine is made of stainless steel casing, which is more high-grade and durable.

★After the printing operation is complete, all the printing plates are placed on the conveyor belt, and the printing plate is automatically brought into the whole cleaning process.

★The washing and rinsing series provides an automatic two-stage cleaning process. The first stage is liquid cleaning and the second stage is rinsing with water.

★The liquid is provided with a circulating filtration function.

★The unique combination of a specially manufactured soft brush and a special cleaning solution ensures an efficient and gentle plate cleaning process.

★Water will remove the ink residue and cleaning fluid.

★After hot air drying, the plate can be 100% clean and dry, and can be reused immediately. The whole process only takes a few minutes.



Main Technical Variables

Model

GW-XB-450

GW-XB-650

GW-XB-1050

GW-XB-1350

Max plate length(mm)

450

650

1050

1350

Machine dimension(mm)

2350*1100*1150

3370*1350*1150

3900*1500*1150

5050*1920*1150

voltage

220v

220v

220v

220V

Special order with special size


Illustrate in detail:

This machine has a unique body structure and stable performance

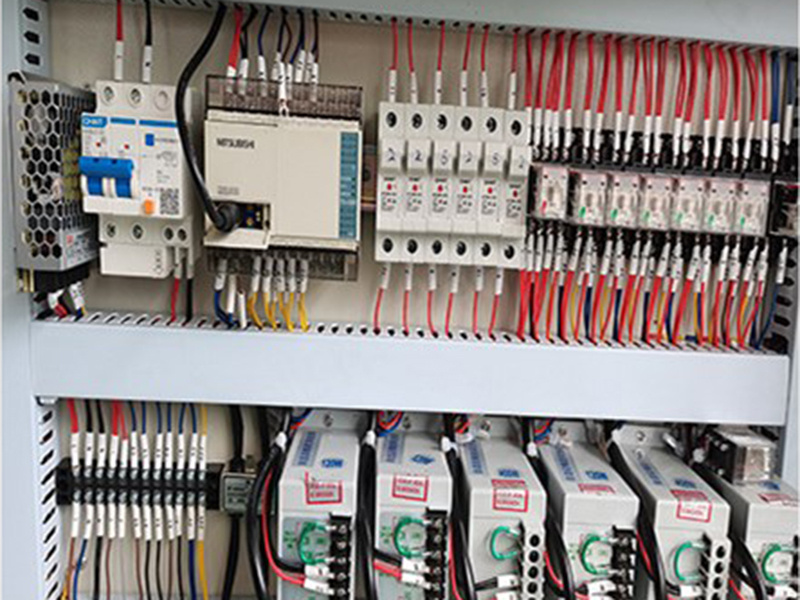

Adopt brand-name electrical appliances and control system to ensure the reliability and stability of the control system
