Product Overview:
1. The fuselage adopts electrostatic spraying-baking paint, which is solvent-resistant.
2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine.

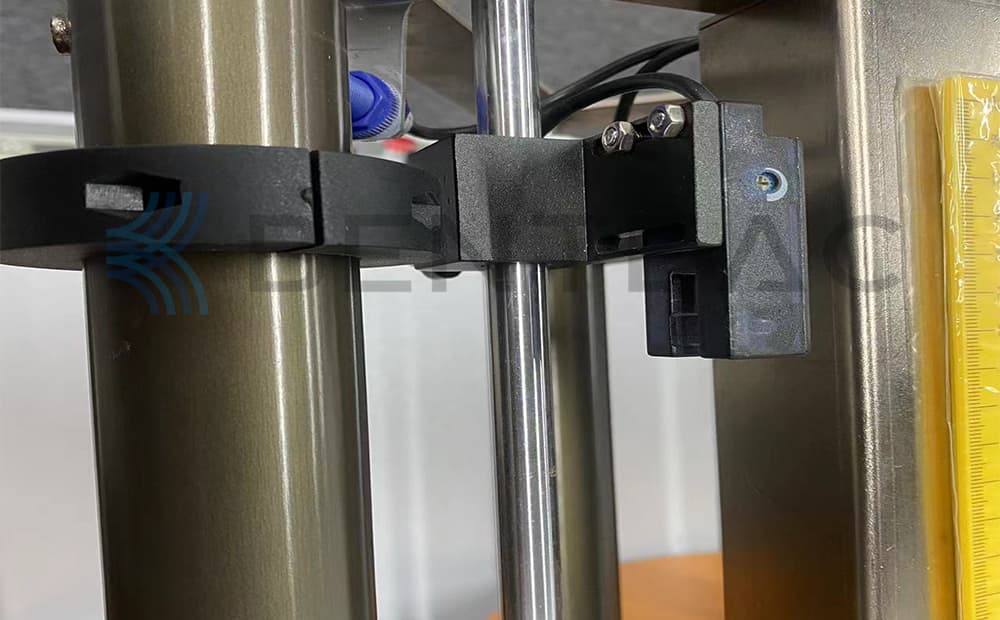

3. Using the meter sensor, you can set the number of meters to automatically stop.
4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable.

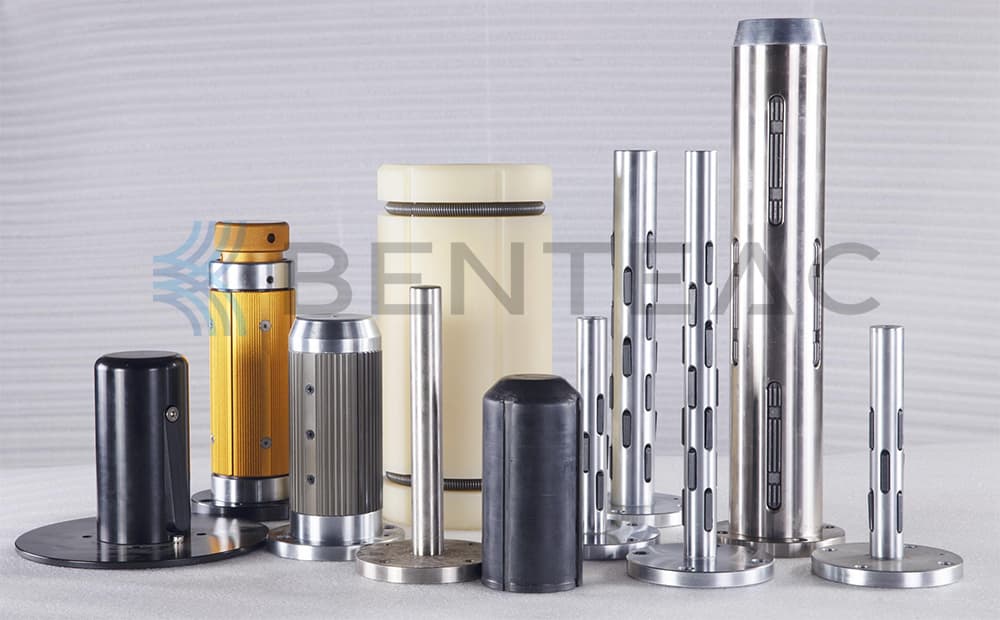

4. The rewinding/unwinding reel adopts an inflatable shaft.
5. Using magnetic powder tension, the tension can be adjusted.
6. Long service life, mainly used for rewinding various types of plastic coils.
7. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.
Product Overview:
1. The fuselage adopts electrostatic spraying-baking paint, which is solvent-resistant.
2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine.
3. Using the meter sensor, you can set the number of meters to automatically stop.
4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable.
4. The rewinding/unwinding reel adopts an inflatable shaft.
5. Using magnetic powder tension, the tension can be adjusted.
6. Long service life, mainly used for rewinding various types of plastic coils.
7. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.
Technical Parameter:
Machine name |
Automatic rewinder |
|
Machine mode |
GW-FJ-450EF |
|
Maximum take-up/unwind diameter |
mm |
450 |
Rewind/unwind reel diameter |
In |
3 |
Rewind/unwind reel height |
mm |
300 |
Speed |
m/min |
10-40 |
Weight capacity |
kg |
30 |
Power |
w |
120 |
Power supply |
v |
220 |
Weight |
kg |
60 |
Mechanical Dimensions |
mm |
L640*W550*H680 |
Machine function varies subject to final machine configuration.

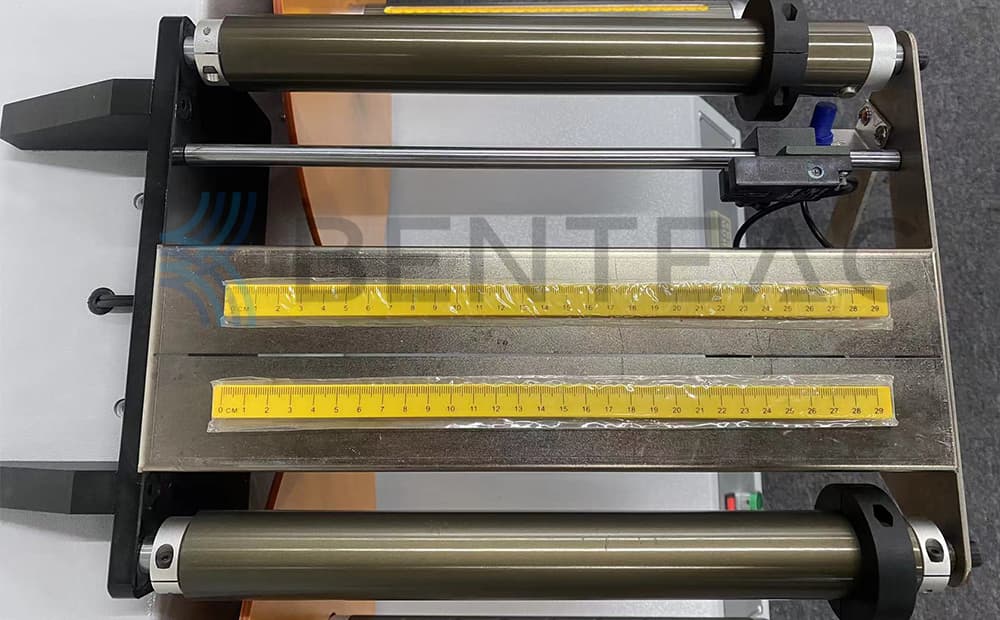

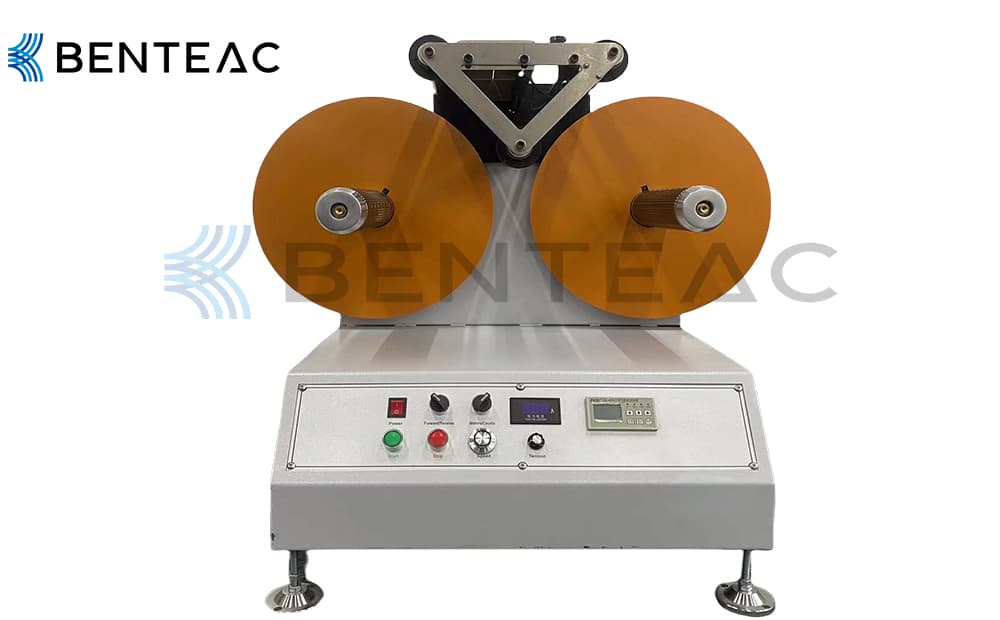

Machine Detail Pictures:
