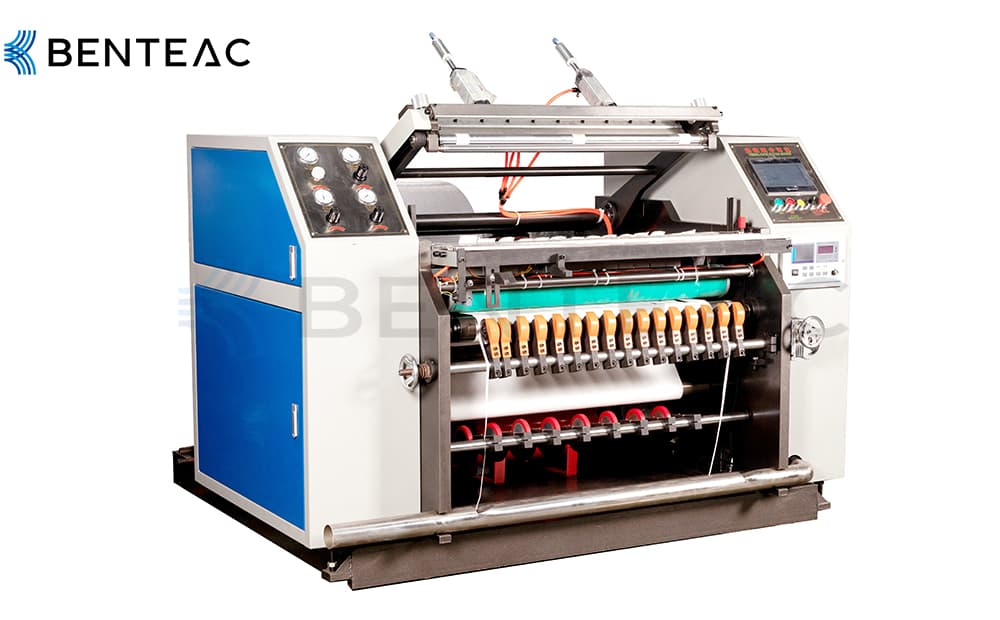

PRODUCT OVERVIEW:
Thermal paper sliting machine is used for slitina various paper, like fax paper, cash register paper, comouter paper. medicalrecord paper, pos paper, ATM Paper, non woven cloth, lt uses PLC to control, operates with Man-machine interface. hasfrequency control of motor speed, controls tension automatically and uses the way of three-roller holding surfaco centracoiling system to roll the paper, in addition, it is equipped with a pneumatic paper inserter and it can be equipped with anadditional color marking device and dual-layer slitting reeling system. This machine has many characteristics like beautifuloutlook, compact structure, v/inding tight and flat,a high degree of automation, easy operation and so on.
Product Overview:
Thermal paper sliting machine is used for slitina various paper, like fax paper, cash register paper, comouter paper. medicalrecord paper, pos paper, ATM Paper, non woven cloth, lt uses PLC to control, operates with Man-machine interface. hasfrequency control of motor speed, controls tension automatically and uses the way of three-roller holding surfaco centracoiling system to roll the paper, in addition, it is equipped with a pneumatic paper inserter and it can be equipped with anadditional color marking device and dual-layer slitting reeling system. This machine has many characteristics like beautifuloutlook, compact structure, v/inding tight and flat,a high degree of automation, easy operation and so on.
Technical Parameter:
|
Model Type |
GW-FQ-900 |
|
Max. Parent Web Width |
860mm |
|
Max. Parent Web Dia.: |
1000mm |
|
Max. Rewinding Dia.: |
150mm |
|
Max. Unwinding Speed: |
150m/min |
|
Unwinding Shaft: |
3” Pneumatic Air Expanding Shaft |
|
Weight: |
1000kg |
|
Voltage: |
3 Phase 380V 50HZ |
|
Rewinding Shaft in Diameter |
0.5'',1 inch ,Coreless(8mm) |
|
Overall Dimensions: |
2050 x 1600 x 1500mm |

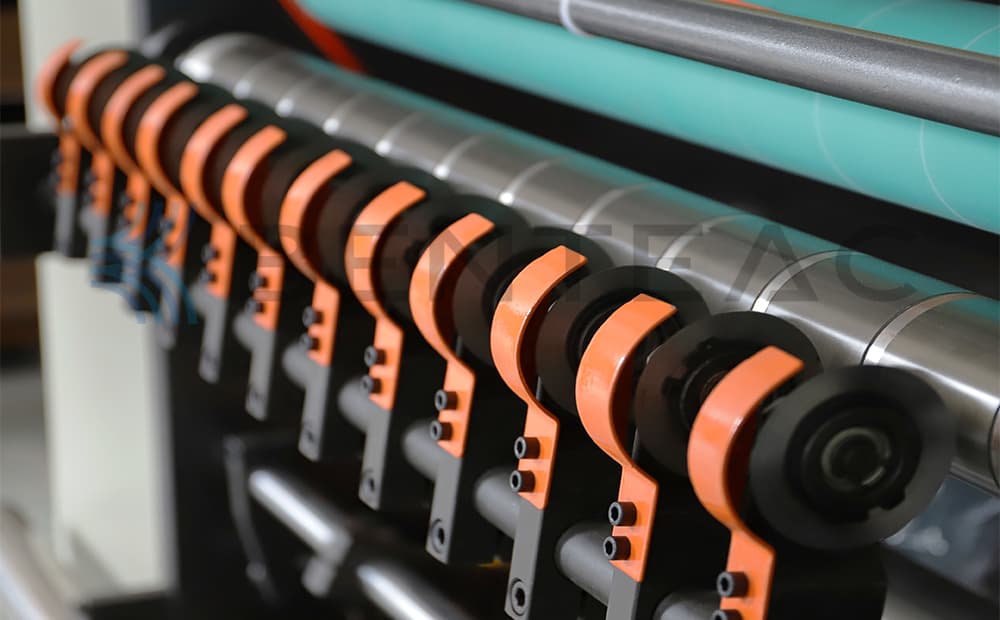

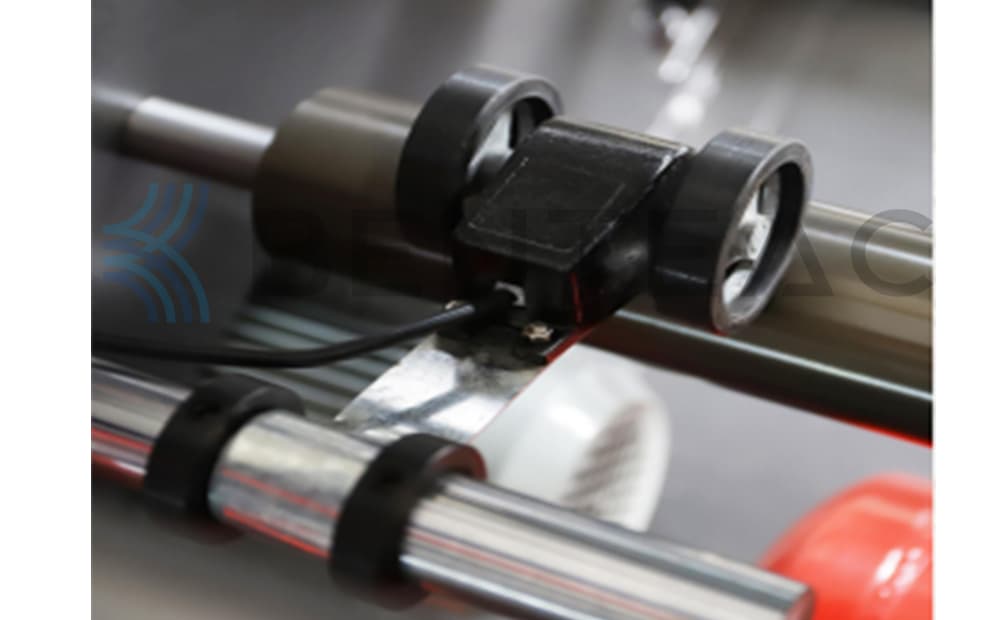

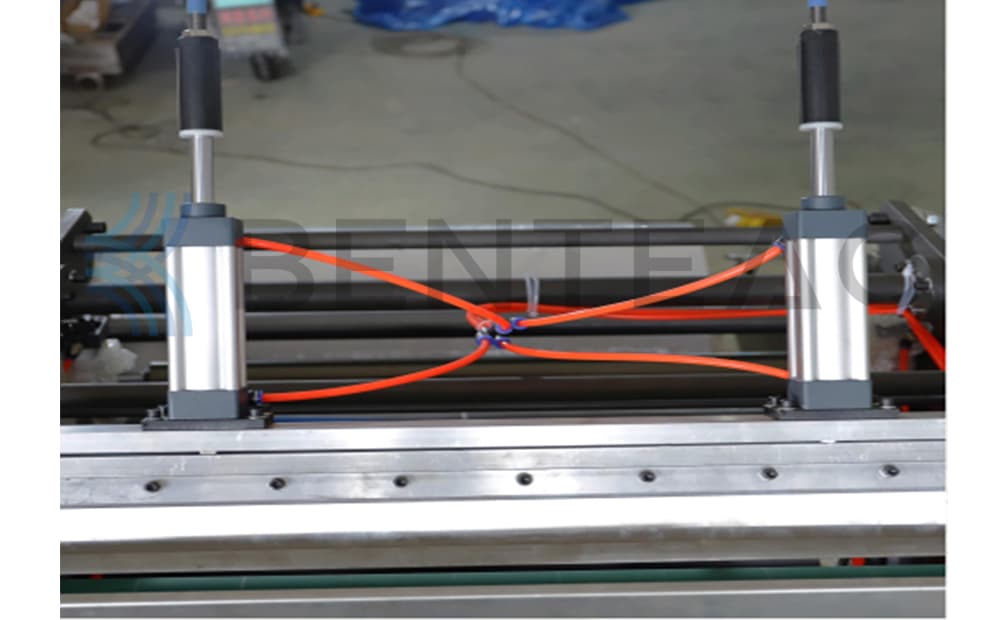

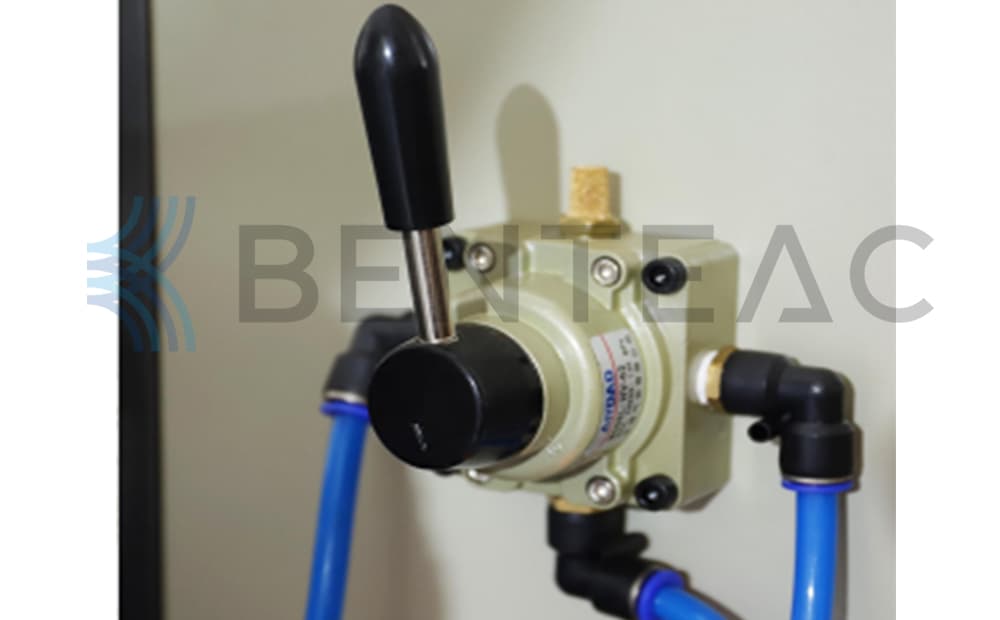

Machine Detail Pictures:
PRODUCT OVERVIEW: Thermal paper sliting machine is used for slitina various paper, like fax paper, cash register paper, comouter paper. medicalrecord paper, pos paper, ATM Paper, non woven cloth, lt uses PLC to control, operates with Man-machine interface. hasfrequency control of motor speed, controls tension automatically and uses the way of three-roller holding surfaco centracoiling system to roll the paper, in addition, it is equipped with a pneumatic paper inserter and it can be equipped with anadditional color marking device and dual-layer slitting reeling system. This machine has many characteristics like beautifuloutlook, compact structure, v/inding tight and flat,a high degree of automation, easy operation and so on.
